Unconstrained Model Predictive Control

Unconstrained Model Predictive Control (MPC) provides a foundation for understanding the core principles of predictive control without the complexity of constraint handling. This document presents the complete mathematical derivation and implementation of unconstrained MPC for linear systems.

Problem Formulation

System Model

Consider a discrete-time linear time-invariant system:

$$x_{k+1} = Ax_k + Bu_k$$

Where:

• $x_k \in \mathbb{R}^n$: state vector at time step $k$
• $u_k \in \mathbb{R}^p$: control input vector at time step $k$
• $A \in \mathbb{R}^{n \times n}$: state transition matrix
• $B \in \mathbb{R}^{n \times p}$: input matrix

Performance Function

The finite-horizon cost function is:

$$J_k = \frac{1}{2}x_{k+h}^T Q_f x_{k+h} + \frac{1}{2}\sum_{i=0}^{h-1} \left(x_{k+i}^T Q x_{k+i} + u_{k+i}^T R u_{k+i}\right)$$

Where:

• $h$: prediction horizon (number of future steps to consider)
• $Q_f \in \mathbb{R}^{n \times n}$: terminal weight matrix ($Q_f \geq 0$)
• $Q \in \mathbb{R}^{n \times n}$: state weight matrix ($Q \geq 0$)
• $R \in \mathbb{R}^{p \times p}$: input weight matrix ($R > 0$)

Weight Matrix Properties

• $Q_f, Q$: Positive semi-definite (allow regulation to zero)
• $R$: Positive definite (ensures unique solution)
• These matrices determine the relative importance of different objectives

Prediction Horizon Formulation

State Predictions

At time step $k$, the future states are predicted as:

$$\begin{aligned} x_{k+1|k} &= Ax_{k|k} + Bu_{k|k} \\ x_{k+2|k} &= Ax_{k+1|k} + Bu_{k+1|k} \\ &\vdots \\ x_{k+h|k} &= Ax_{k+h-1|k} + Bu_{k+h-1|k} \end{aligned}$$

Compact Matrix Notation

For efficient computation, define the stacked vectors:

Predicted state vector:

$$X_k := \begin{bmatrix} x_{k+1|k} \\ x_{k+2|k} \\ \vdots \\ x_{k+h|k} \end{bmatrix} \in \mathbb{R}^{nh}$$

Control input vector:

$$U_k := \begin{bmatrix} u_{k|k} \\ u_{k+1|k} \\ \vdots \\ u_{k+h-1|k} \end{bmatrix} \in \mathbb{R}^{ph}$$

Matrix Form of Predictions

The prediction equation becomes:

$$X_k = A_p x_{k|k} + B_p U_k$$

Where:

Prediction matrix for states:

$$A_p = \begin{bmatrix} A \\ A^2 \\ \vdots \\ A^h \end{bmatrix} \in \mathbb{R}^{nh \times n}$$

Prediction matrix for inputs:

$$\begin{aligned}B_p = \begin{bmatrix}B & 0 _ { n \times p} & \cdots & 0_{n \times p} \\AB & B & \cdots & 0 _ { n \times p} \\\vdots & \vdots & \ddots & \vdots \\A^{h-1}B & A^{h-2}B & \cdots & B\end{bmatrix} \in \mathbb{R}^{nh \times ph}\end{aligned}$$

Matrix Interpretation

• Each row block of $A_p$ contains $A^i$ representing the effect of initial state after $i$ steps
• Each element of $B_p$ contains $A^{i-j}B$ representing the effect of input $u_{k+j-1}$ on state $x_{k+i}$

Quadratic Programming Transformation

Objective: Standard QP Form

To solve the MPC problem efficiently, we transform it into standard quadratic programming form:

$$\min_{U_k} \frac{1}{2}U_k^T H U_k + F^T x_{k|k} U_k + \text{constant}$$

Step 1: Separate Initial State Cost

Rewrite the cost function by extracting the initial state term:

$$J_k = \frac{1}{2}x_{k|k}^T Q x_{k|k} + \frac{1}{2}x_{k+h|k}^T Q_f x_{k+h|k} + \frac{1}{2}\sum_{i=1}^{h-1} x_{k+i|k}^T Q x_{k+i|k} + \frac{1}{2}\sum_{i=0}^{h-1} u_{k+i|k}^T R u_{k+i|k}$$

Step 2: Define Block Diagonal Matrices

State weight matrix for prediction horizon:

$$Q_p := \begin{bmatrix} Q & \cdots & 0_{n \times n} \\ \vdots & Q & \vdots \\ 0_{n \times n} & \cdots & Q_f \end{bmatrix} \in \mathbb{R}^{nh \times nh}$$

Input weight matrix for prediction horizon:

$$R_p := \begin{bmatrix} R & \cdots & 0_{p \times p} \\ \vdots & R & \vdots \\ 0_{p \times p} & \cdots & R \end{bmatrix} \in \mathbb{R}^{ph \times ph}$$

Step 3: Express Cost in Matrix Form

The cost function becomes:

$$J_k = \frac{1}{2}x_{k|k}^T Q x_{k|k} + \frac{1}{2}X_k^T Q_p X_k + \frac{1}{2}U_k^T R_p U_k$$

Step 4: Substitute Prediction Equation

Substituting $X_k = A_p x_{k|k} + B_p U_k$:

$$X_k^T Q_p X_k = (A_p x_{k|k} + B_p U_k)^T Q_p (A_p x_{k|k} + B_p U_k)$$

Expanding:

$$\begin{aligned} X_k^T Q_p X_k &= x_{k|k}^T A_p^T Q_p A_p x_{k|k} \\ &\quad + 2x_{k|k}^T A_p^T Q_p B_p U_k \\ &\quad + U_k^T B_p^T Q_p B_p U_k \end{aligned}$$

Step 5: Final QP Form

Collecting terms:

$$J_k = \frac{1}{2}U_k^T H U_k + F^T x_{k|k} U_k + C$$

Where:

Hessian matrix:

$$H := R_p + B_p^T Q_p B_p \in \mathbb{R}^{ph \times ph}$$

Linear term coefficient:

$$F := B_p^T Q_p A_p \in \mathbb{R}^{ph \times n}$$

Constant term:

$$C := \frac{1}{2}x_{k|k}^T (Q + A_p^T Q_p A_p) x_{k|k}$$

Key Point

The constant term $C$ depends only on the current state $x_{k|k}$ and doesn't affect the optimization. We can ignore it when solving for the optimal control sequence.

Analytical Solution

Unconstrained Optimization

For the unconstrained case, the optimal control sequence is found by setting the gradient to zero:

$$\frac{\partial J_k}{\partial U_k} = H U_k + F x_{k|k} = 0$$

Optimal control sequence:

$$U_k^* = -H^{-1} F x_{k|k}$$

Extracting the First Control

Since MPC applies only the first control action:

$$u_{k|k}^* = \begin{bmatrix} I_{p \times p} & 0_{p \times p} & \cdots & 0_{p \times p} \end{bmatrix} U_k^*$$

This gives us the MPC feedback law:

$$u_{k|k}^* = -K_{mpc} x_{k|k}$$

Where the MPC feedback gain is:

$$K_{mpc} := \begin{bmatrix} I_{p \times p} & 0_{p \times p} & \cdots & 0_{p \times p} \end{bmatrix} H^{-1} F$$

Implementation

MATLAB Implementation

QP Transformation Function

function [Ap, Bp, Qp, Rp, F, H] = QP_Transform(A, B, Q, R, Qf, Np)
%% QP_Transform - Transform MPC cost function into standard QP form
%
% This function transforms the MPC cost function into standard QP form
% for efficient numerical solution.
%
% Inputs:
%   A, B - System matrices
%   Q, R, Qf - Weight matrices
%   Np - Prediction horizon
%
% Outputs:
%   Ap, Bp - Prediction matrices
%   Qp, Rp - Block diagonal weight matrices
%   F, H - QP problem matrices

n = size(A, 1);  % Number of states
p = size(B, 2);  % Number of inputs

% Initialize prediction matrices
Ap = zeros(Np*n, n);
Bp = zeros(Np*n, Np*p);

% Build prediction matrix Ap = [A; A^2; ...; A^Np]
for i = 1:Np
    Ap((i-1)*n+1:i*n, :) = A^i;
end

% Build prediction matrix Bp
for i = 1:Np
    for j = 1:i
        Bp((i-1)*n+1:i*n, (j-1)*p+1:j*p) = A^(i-j) * B;
    end
end

% Build block diagonal weight matrices
% Qp = diag(Q, Q, ..., Q, Qf)
Qp = kron(eye(Np-1), Q);
Qp = blkdiag(Qp, Qf);

% Rp = diag(R, R, ..., R)
Rp = kron(eye(Np), R);

% Compute QP matrices
F = Bp' * Qp * Ap;       % Linear term coefficient
H = Bp' * Qp * Bp + Rp;  % Hessian matrix

end

MPC vs LQR Comparison

%% MPC vs LQR Comparison
%----------------------------------------------------------%
% Compare performance of unconstrained MPC and LQR
%----------------------------------------------------------%
clear; close all; clc;
set(0, 'DefaultAxesFontName', 'Times New Roman')
set(0, 'DefaultAxesFontSize', 14)

%% System Model
A = [0 1; 0.5 0];
n = size(A, 1);
B = [0; 1];
p = size(B, 2);

% Simulation parameters
Time = 3;        % Total simulation time
ts = 0.1;        % Sampling time
k_steps = Time/ts;  % Number of simulation steps

%% Weight Matrices
Q = [1 0; 0 1];   % State weight matrix
Qf = [1 0; 0 1];  % Terminal weight matrix
R = 1;            % Input weight matrix

%% Initialization
Np = 5;                    % Prediction horizon
x0 = [10; 5];             % Initial state
x_lqr = x0;               % LQR state
x_mpc = x0;               % MPC state

% History arrays
xh_lqr = zeros(n, k_steps+1);
xh_mpc = zeros(n, k_steps+1);
uh_lqr = zeros(p, k_steps);
uh_mpc = zeros(p, k_steps);

xh_lqr(:, 1) = x_lqr;
xh_mpc(:, 1) = x_mpc;

%% Controller Design
% LQR gain
K_lqr = lqr(A, B, Q, R);

% MPC matrices
[Ap, Bp, Qp, Rp, F, H] = QP_Transform(A, B, Q, R, Qf, Np);

%% Simulation Loop
for k = 1:k_steps
    %% MPC Control
    % Solve QP problem: min 0.5*U'*H*U + (F*x_mpc)'*U
    options = optimoptions('quadprog', 'Display', 'off');
    U_opt = quadprog(H, F*x_mpc, [], [], [], [], [], [], [], options);
    u_mpc = U_opt(1:p);  % Extract first control action

    % Update MPC system
    x_mpc = A * x_mpc + B * u_mpc;

    % Store results
    xh_mpc(:, k+1) = x_mpc;
    uh_mpc(:, k) = u_mpc;

    %% LQR Control
    u_lqr = -K_lqr * x_lqr;

    % Update LQR system
    x_lqr = A * x_lqr + B * u_lqr;

    % Store results
    xh_lqr(:, k+1) = x_lqr;
    uh_lqr(:, k) = u_lqr;
end

%% Plotting
figure('Position', [100, 100, 800, 600]);

% State x1
subplot(3, 1, 1);
plot(0:k_steps, xh_lqr(1, :), 'b-', 'LineWidth', 2);
hold on;
plot(0:k_steps, xh_mpc(1, :), 'r--', 'LineWidth', 2);
legend('LQR', 'MPC', 'FontSize', 12);
xlabel('Time step');
ylabel('State x_1');
title('State x_1 Response');
grid on;

% State x2
subplot(3, 1, 2);
plot(0:k_steps, xh_lqr(2, :), 'b-', 'LineWidth', 2);
hold on;
plot(0:k_steps, xh_mpc(2, :), 'r--', 'LineWidth', 2);
legend('LQR', 'MPC', 'FontSize', 12);
xlabel('Time step');
ylabel('State x_2');
title('State x_2 Response');
grid on;

% Control input
subplot(3, 1, 3);
plot(0:k_steps-1, uh_lqr(1, :), 'b-', 'LineWidth', 2);
hold on;
plot(0:k_steps-1, uh_mpc(1, :), 'r--', 'LineWidth', 2);
legend('LQR', 'MPC', 'FontSize', 12);
xlabel('Time step');
ylabel('Control Input u');
title('Control Effort');
grid on;

sgtitle('MPC vs LQR Performance Comparison', 'FontSize', 16, 'FontWeight', 'bold');

Python Implementation

import numpy as np
import matplotlib.pyplot as plt
from scipy.optimize import minimize
from scipy.linalg import solve_discrete_are

def qp_transform(A, B, Q, R, Qf, Np):
    """Transform MPC cost function into standard QP form"""
    n, p = A.shape[0], B.shape[1]

    # Build prediction matrix Ap
    Ap = np.zeros((Np*n, n))
    A_power = np.eye(n)
    for i in range(Np):
        A_power = A_power @ A
        Ap[i*n:(i+1)*n, :] = A_power

    # Build prediction matrix Bp
    Bp = np.zeros((Np*n, Np*p))
    for i in range(Np):
        for j in range(i+1):
            Bp[i*n:(i+1)*n, j*p:(j+1)*p] = np.linalg.matrix_power(A, i-j) @ B

    # Build block diagonal weight matrices
    Qp = np.kron(np.eye(Np-1), Q)
    Qp = np.block([[Qp, np.zeros((Qp.shape[0], Qf.shape[1]))],
                   [np.zeros((Qf.shape[0], Qp.shape[1])), Qf]])

    Rp = np.kron(np.eye(Np), R)

    # Compute QP matrices
    F = Bp.T @ Qp @ Ap
    H = Bp.T @ Qp @ Bp + Rp

    return Ap, Bp, Qp, Rp, F, H

def mpc_unconstrained(A, B, Q, R, Qf, x0, k_steps, Np):
    """Unconstrained MPC simulation"""
    n, p = A.shape[0], B.shape[1]

    # Get QP matrices
    _, _, _, _, F, H = qp_transform(A, B, Q, R, Qf, Np)

    # Initialize arrays
    x_traj = np.zeros((n, k_steps+1))
    u_traj = np.zeros((p, k_steps))
    x_traj[:, 0] = x0

    x = x0.copy()

    for k in range(k_steps):
        # Solve QP problem: min 0.5*U'*H*U + (F*x)'*U
        def objective(U):
            return 0.5 * U.T @ H @ U + (F @ x).T @ U

        # Initial guess
        U0 = np.zeros(Np * p)

        # Solve optimization
        result = minimize(objective, U0, method='BFGS')
        U_opt = result.x

        # Extract first control action
        u = U_opt[:p]
        u_traj[:, k] = u

        # Update state
        x = A @ x + B @ u
        x_traj[:, k+1] = x

    return x_traj, u_traj

# System matrices
A = np.array([[0, 1], [0.5, 0]])
B = np.array([[0], [1]])

# Weight matrices
Q = np.eye(2)
Qf = np.eye(2)
R = np.array([[1]])

# Simulation parameters
x0 = np.array([10, 5])
k_steps = 30
Np = 5

# MPC simulation
x_mpc, u_mpc = mpc_unconstrained(A, B, Q, R, Qf, x0, k_steps, Np)

# LQR for comparison
P = solve_discrete_are(A, B, Q, R)
K_lqr = np.linalg.solve(R + B.T @ P @ B, B.T @ P @ A)

# LQR simulation
x_lqr = np.zeros((2, k_steps+1))
u_lqr = np.zeros((1, k_steps))
x_lqr[:, 0] = x0

x = x0.copy()
for k in range(k_steps):
    u = -K_lqr @ x
    u_lqr[:, k] = u
    x = A @ x + B @ u
    x_lqr[:, k+1] = x

# Plotting
fig, (ax1, ax2, ax3) = plt.subplots(3, 1, figsize=(10, 8))

# State x1
ax1.plot(range(k_steps+1), x_lqr[0, :], 'b-', linewidth=2, label='LQR')
ax1.plot(range(k_steps+1), x_mpc[0, :], 'r--', linewidth=2, label='MPC')
ax1.set_ylabel('State $x_1$')
ax1.set_title('State $x_1$ Response')
ax1.legend()
ax1.grid(True)

# State x2
ax2.plot(range(k_steps+1), x_lqr[1, :], 'b-', linewidth=2, label='LQR')
ax2.plot(range(k_steps+1), x_mpc[1, :], 'r--', linewidth=2, label='MPC')
ax2.set_ylabel('State $x_2$')
ax2.set_title('State $x_2$ Response')
ax2.legend()
ax2.grid(True)

# Control input
ax3.plot(range(k_steps), u_lqr[0, :], 'b-', linewidth=2, label='LQR')
ax3.plot(range(k_steps), u_mpc[0, :], 'r--', linewidth=2, label='MPC')
ax3.set_xlabel('Time step')
ax3.set_ylabel('Control Input $u$')
ax3.set_title('Control Effort')
ax3.legend()
ax3.grid(True)

plt.tight_layout()
plt.suptitle('MPC vs LQR Performance Comparison', fontsize=16, fontweight='bold', y=0.98)
plt.show()

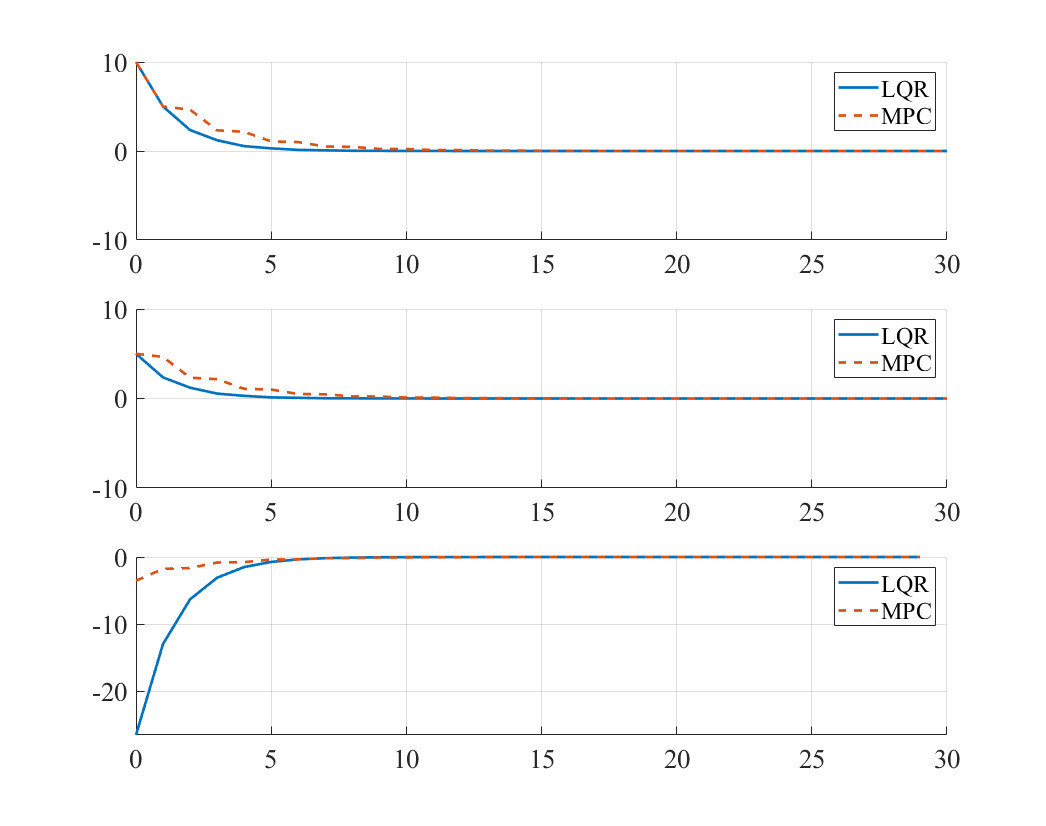

Analysis: MPC vs LQR

Performance Comparison

The simulation results demonstrate several key differences between unconstrained MPC and LQR:

Weight Matrix Effects

Case 1: $Q = Q_f = \begin{bmatrix} 100 & 0 \\ 0 & 1 \end{bmatrix}, R = 1$

• High penalty on $x_1$: Both controllers prioritize position regulation
• MPC shows similar performance to LQR but with slightly different transients
• Both achieve fast convergence of position state

Case 2: $Q = Q_f = \begin{bmatrix} 1 & 0 \\ 0 & 1 \end{bmatrix}, R = 1$

• Balanced state penalties: Equal importance on both states
• MPC exhibits more conservative behavior initially
• Similar steady-state performance for both controllers

Case 3: $Q = Q_f = \begin{bmatrix} 1 & 0 \\ 0 & 1 \end{bmatrix}, R = 100$

• High input penalty: Both controllers use minimal control effort
• Slower convergence but smoother control action
• MPC shows slightly different input profile due to finite horizon

Key Observations

1. Finite Horizon Effects:

   • MPC considers only $h$ future steps, while LQR assumes infinite horizon
   • This can lead to slightly different control strategies, especially early in the response

2. Terminal Cost Importance:

   • The choice of $Q_f$ affects MPC performance significantly
   • Setting $Q_f$ equal to the infinite-horizon LQR cost matrix often improves performance

3. Computational Differences:

   • LQR: One-time gain computation, constant feedback law
   • MPC: Online optimization at each time step, adaptive behavior

4. Equivalence Conditions:

   • For very long prediction horizons, unconstrained MPC approaches LQR performance
   • With proper terminal cost design, even short horizons can achieve good performance

Design Guidelines

Prediction Horizon Selection

Short horizons ($h = 2-5$):

• Fast computation
• May sacrifice performance
• Suitable for fast systems or limited computational resources

Medium horizons ($h = 10-20$):

• Good balance between performance and computation
• Covers most system dynamics
• Recommended for most applications

Long horizons ($h > 20$):

• Approaches infinite-horizon performance
• Higher computational cost
• May be unnecessary for many systems

Weight Matrix Tuning

State weights ($Q, Q_f$):

• Reflect relative importance of different states
• $Q_f$ should account for future behavior beyond horizon
• Consider setting $Q_f$ as solution to infinite-horizon ARE

Input weights ($R$):

• Balance performance vs. control effort
• Larger values → more conservative control
• Consider actuator limitations and energy constraints

Computational Considerations

Matrix conditioning:

• Ensure $H$ is well-conditioned for numerical stability
• Check eigenvalues of $H$ for positive definiteness
• Consider regularization if necessary

Efficient implementation:

• Pre-compute constant matrices ($A_p$, $B_p$) when possible
• Use warm-starting for iterative solvers
• Exploit structure in QP problem for faster solution

Extensions and Future Topics

1. Constrained MPC

• Inequality constraints on states and inputs
• Constraint handling and feasibility
• Active set methods and interior-point algorithms

2. Robust MPC

• Model uncertainties and disturbances
• Tube-based MPC
• Min-max optimization

3. Nonlinear MPC

• Nonlinear system models
• Nonlinear programming solvers
• Successive linearization approaches

4. Economic MPC

• Economic objective functions
• Integration of control and optimization
• Performance vs. economics trade-offs

Summary

Unconstrained MPC provides:

• Systematic framework for finite-horizon optimal control
• Natural extension of LQR to finite horizons
• Foundation for understanding constrained MPC
• Computational efficiency through QP formulation

The analytical solution reveals the direct relationship between MPC and LQR, while the finite horizon introduces important design considerations for practical implementation.

References

1. Rawlings, J. B., Mayne, D. Q., & Diehl, M. (2017). Model Predictive Control: Theory, Computation, and Design (2nd ed.). Nob Hill Publishing.
2. Rakovic, S. V., & Levine, W. S. (2018). Handbook of Model Predictive Control. Birkhäuser.
3. Wang, T. (2023). 控制之美 (卷2). Tsinghua University Press.
4. Maciejowski, J. M. (2002). Predictive Control: With Constraints. Pearson Education.
